Parts Pictorial - GRAY Series2 Touchscreen Install
Gray Series2 Touchscreen as per Chevy 2011+ PPV Caprice or some 2011+ Holden Models other than SV6,SS,SSV or HSV.
[The Gray is different to the Jade Black touchscreen around the hazard-4way flasher button....Different trim parts are needed for each colour version of touchscreen] See other threads for Jade Black.
Series2 Gray into Pontiac G8 (Series1 VE car)
Crazy Paul
Your Holden Parts Connection in Australia!
Top Central Speaker Cover (different to Series1 cars)
92257257 or 92420673
Top Housing
92239465
Air Vents (May be the same as some Series1, except PPV vents have chrome on the slide buttons)
92252813 Left
92252811 Right
Duct
92263775
Applique
92252515 or 92267270 Left
92253510 or 92267265 Right
Crazy Paul
Your Holden Parts Connection in Australia!
Support Cage for Head Unit (for Silver Cube Box)
92244374 or 92260937
Lower Support (Skeleton Frame)
92222623 or 92258108 or 92261672

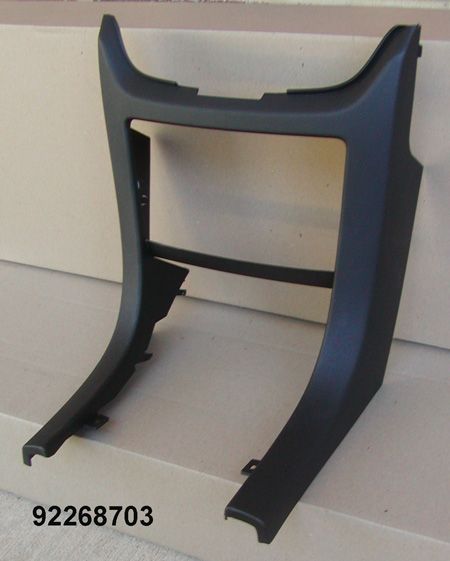

Lower Trim Cover (Curved) which covers the skeleton frame.
92239463 or 92268703
Last edited by Crazy Paul; 06-17-2014 at 10:06 PM.
Crazy Paul
Your Holden Parts Connection in Australia!
Because of the curved lower section you need a shorter gear surround trim with an upward matching curve at the front.
(Stock G8 and SV6,SS,SSV Series1 gear surround trims are too long and flat to be re-used)
Colour Options:
Micro Silver Auto 92239147
Micro silver small rear of cupholder piece 92239152
Platinum Silver Auto 92239149
Rado Silver (2009 trim colour) Auto 92176910
Rado Silver small rear of cupholder piece 92171508
Rado Silver (2009 trim colour) Manual 92188262
Rado Silver small rear of cupholder piece 92171508
Crazy Paul
Your Holden Parts Connection in Australia!
To compliment the curved lower components you could install a cubby with curved front door....inside the flip-up push button lid is a small removable coin/ash tray, a light, a cig lighter socket and lighter.
Front and Rear Smokers Pack (sold as a pair)
Micro silver 92189927
Rado silver 92188828
Platinum Silver 92258723
Optional TMC splitter for Sat Nav.
92253420
Hardware Supplies:
White Wedge Shaped Trim Clips
92139070
Large Black Wedge Shaped Stereo Faceplate Clips
92206356
Black Screws
92138633
Last edited by Crazy Paul; 04-18-2014 at 03:58 PM.
Crazy Paul
Your Holden Parts Connection in Australia!
